Deck widget views

A deck widget is a tile on the deck drawn from your tree, served over a widget surface.

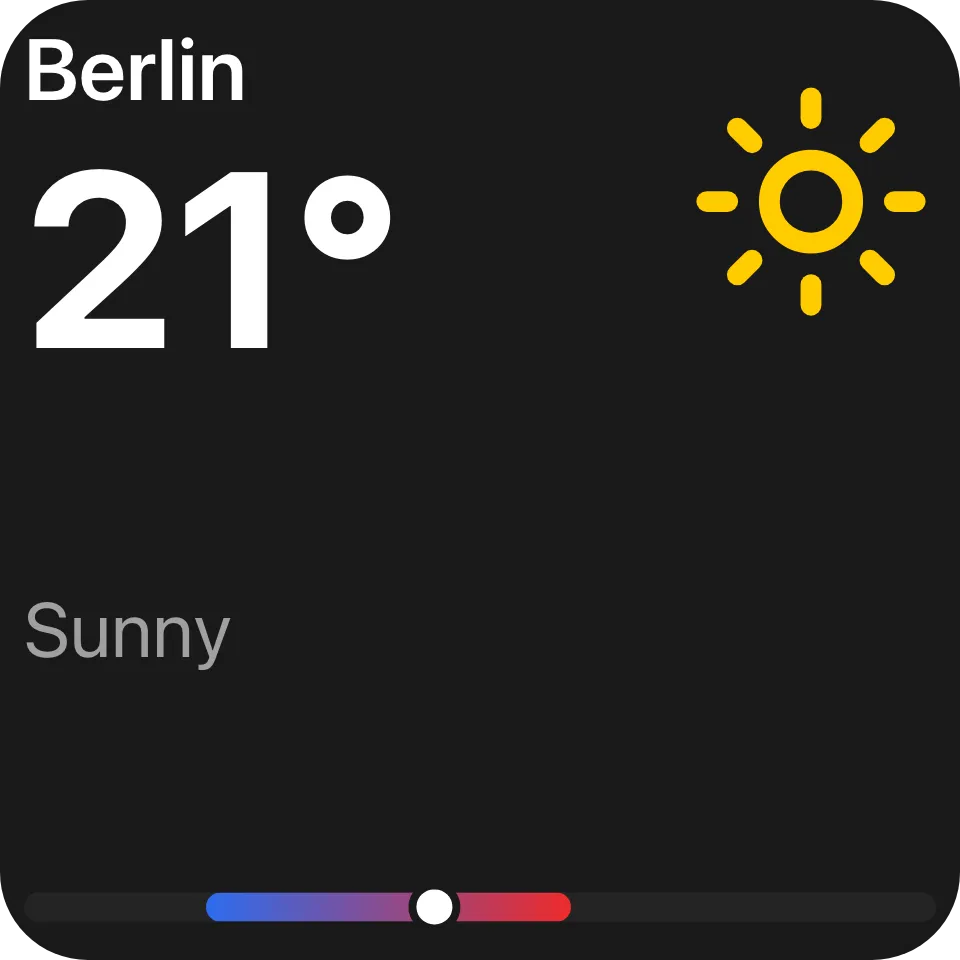

Example

public IReadOnlyList<UiSurfaceDeclaration> Surfaces { get; } =
[
    new UiSurfaceDeclaration { Kind = UiSurfaceKinds.Widget, SessionMode = UiSessionModes.Shared },
];

public Task<IUiSession?> CreateSessionAsync(UiSessionRequest request, CancellationToken cancellationToken)
{
    if (request.Surface.Kind != UiSurfaceKinds.Widget)
    {
        return Task.FromResult<IUiSession?>(null);
    }

    var data = request.Surface.Attributes[UiWidgetSurfaceAttributes.Data];
    var city = data.TryGetProperty("city", out var value) ? value.GetString() : null;

    var view = new UiView(request.Surface, Weather(city ?? "Berlin"));
    return Task.FromResult<IUiSession?>(new ViewSession(view));
}

private UiStack Weather(string city) => new()
{
    Key = "weather",
    Justify = UiComponentJustify.SpaceBetween,
    Children =
    [
        new UiStack
        {
            Key = "current",
            Direction = UiComponentDirections.Horizontal,
            Justify = UiComponentJustify.SpaceBetween,
            Children =
            [
                new UiStack
                {
                    Key = "labels",
                    Children =
                    [
                        new UiTextRun { Key = "location", Text = city, Size = 0.09 },
                        new UiTextRun { Key = "temp", Text = UiText.From(() => $"{_forecast.Value.Temperature}°"), Size = 0.26 },
                    ],
                },
                new UiImage { Key = "icon", Source = _sun, Size = 0.26 },
            ],
        },
        new UiTextRun
        {
            Key = "condition",
            Text = UiText.From(() => _forecast.Value.Condition),
            Size = 0.08,
            Role = UiComponentTextRoles.Secondary,
        },
        new UiRangeBar { Key = "range", MainSize = 0.06, Start = 0.2, End = 0.6, Marker = 0.45 },
    ],
};

To offer a widget in the picker, register a widget type - that page covers registration, the picker card and configuration. The same vocabulary also draws a folder view and an action modal.

Forwarding to a UiView

ViewSession, the adapter between a UiView and IUiSession used on every view page, is defined on Serving a view.

What the surface carries

Attribute (`UiWidgetSurfaceAttributes`)	Meaning
`widgetId`	The widget being drawn.
`widgetType`	Its qualified widget type id.
`data`	Its stored configuration, as JSON.
`cornerRadius`	The tile’s corner radius.
`sample`	`true` when the picker asks for a representative sample.
`culture`	The language Macro Deck is set to, for example `de` or `pt-BR`. Absent on a Macro Deck that predates it.
`ghost`	`true` when drawing the drag ghost of a widget that is also drawn live.

The surface carries no size: a widget is resized on the deck without asking you. To lay a 2x1 or 1x2 tile out differently from a 1x1 one, use UiResponsive, which the reader resolves against the tile.

The stored configuration travels with the request rather than being looked up, so a provider outside the host can serve a widget. A provider that ignores sample or ghost keeps behaving exactly as it did.

For a type that declares standard appearance, UiWidgetAppearance.Read(data) returns the background, label, colours and font the user or an action set.

UiWidgetSurface in MacroDeck.Ui.Widgets reads these leniently, so a missing or malformed attribute reads as absent rather than throwing:

Member	Answers
`IsFor(surface, widgetType)`	Whether a `widget` or `preview` surface draws your widget type.
`IsConfigurationFor(surface, widgetType)`	Whether a `config` surface is the `widget-config` entry point of your widget type.
`Data(surface)`	The stored configuration (`data`, or `widgetData` on a configuration surface); an empty object when absent.
`WidgetId(surface)`	The stored widget, or `null` for a preview or an unsaved widget.
`IsSampleRequested(surface)`	Whether a `preview` asks for a picker sample.
`Culture(surface)`	The language to write the widget’s own text in, or `null` when the surface names none.

Labels and other localized text in your tree need no culture: each client resolves them in its reader’s language. culture is for text the widget draws as content, such as the names and messages of a picker sample, which travel as literal text. Resolve those with your own catalog in that culture and fall back to your default language when it is absent.

Keeping content clear of the corner

A tile is a rounded rectangle, and content laid out to its edge runs under the curve. UiWidgetSafeArea.For(surface) is the padding a tile keeps: what the tile’s cornerRadius intrudes on its diagonal, but never less than BreathingRoom, the default gap between two tiles. A surface without a corner radius, such as a preview, uses DefaultCornerRadius. LengthFor(cornerRadius) returns the same inset as a UiLength for a gap or a size.

var root = new UiStack
{
    Key = "root",
    Padding = UiWidgetSafeArea.For(request.Surface),
    Children = [/* ... */],
};

Previews, samples and ghosts

var isSample = UiWidgetSurface.IsSampleRequested(request.Surface);
var isGhost = request.Surface.Attributes.TryGetValue(UiWidgetSurfaceAttributes.Ghost, out var ghost)
    && ghost.ValueKind == JsonValueKind.True;

An editor preview arrives as a preview surface carrying draft configuration instead. A preview with sample: true is a picker card: draw it without reading anything live - nothing is connected, bound or configured while someone is choosing a widget type. ghost exists because two surfaces for one widget are otherwise identical, and without it the ghost and the tile would share a session.

Artwork

_sun above is a resource handle. Get one for your own image from IIntegrationContext.UiResources and register a name again to change the picture; see Registering your own images.
