Modifier

One DSL element, UiModifier, decorates the single element it wraps. What reaches the wire depends on which members you set, because the two halves degrade differently on an older reader:

The modifiers property carries the members that change no geometry. It sits on the wrapped node itself, and a reader that does not know it ignores it and draws the node plainer.
The ui.modifier type carries padding, opacity, clip, mask and frame. Ignoring any of them would draw something wrong or move its siblings, so they are a negotiated type: an older reader draws your explicit Fallback, and there is no default one. Without a fallback, an older reader draws none of the wrapped content (Macro Deck’s own renderer shows a faint placeholder box in its place) - see The UI model.

ui.modifier (component version 1)

Example

new UiModifier
{
    Key = "card",
    Background = UiGradient.Linear(135,
        new UiGradientStop { Offset = 0, Color = "#2b6cee" },
        new UiGradientStop { Offset = 1, Color = "#7a3cf0" }),
    Radius = 0.12,
    Padding = 0.08,
    Child = new UiImage { Key = "icon", Source = icon },
    Fallback = new UiImage { Key = "iconPlain", Source = icon },
}

A white music note inset from the edges of a rounded tile filled with a blue-to-violet diagonal gradient

Padding makes this a ui.modifier node, so the gradient and radius sit on the wrapper and cover the padding. An older reader draws the plain icon.

Decorating a node

new UiModifier
{
    Key = "roomCard",
    Background = "#1c1c1e",
    Radius = 0.1,
    BorderWidth = UiSize.Capped(2d / UiLength.Cell, 2),
    BorderColor = "#ff9500",
    BorderLine = UiComponentBorderLines.Dashed,
    AccessibilityLabel = UiText.Of(strings.RoomLabel),
    Child = new UiStack { Key = "room", Children = [/* ... */] },
}

{ "id": "room", "type": "ui.stack", "properties": { "modifiers": { "background": "#1c1c1e", "radius": { "basis": 0.1 }, "borderWidth": { "basis": 0.0167, "maxOfCell": 0.0167 }, "borderColor": "#ff9500", "borderLine": "dashed", "accessibilityLabel": {"$localized":…} } }, "children": [] }

A white music note inside a dark rounded square traced by a dashed orange border, on a black tile The same music note inside a solid orange border The same music note inside a dotted orange border A music note on a tile filled with a flat blue background A heart on a tile filled with a pink-to-orange linear gradient A power symbol on a tile filled with a green radial gradient that darkens towards the edges A music note on a blue square whose corners are rounded by the radius modifier

With only these members set, the modifier adds no node: the members land on the child’s modifiers object and the id stays the child’s. The child must then build to exactly one component node - a UiWhen, UiRepeat or fragment child is rejected when the view is built. Nested modifiers of this kind merge onto the same node; setting the same member twice on one node is rejected. Because it produces no node of its own, such a modifier cannot set MainSize, Fill, ColumnSpan, RowSpan, Answer, Fallback or RequiredComponentVersion - set those on the child, or add a wrapper member to make it a ui.modifier node.

Events on a modifier

new UiModifier
{
    Key = "pagerGestures",
    Events = [UiEventHandler.On(UiComponentEvents.Swipe, e => { if (e.TryGetString(out var dir)) Page(dir); })],
    Child = pager,
}

A modifier’s handlers join the declared events of the node its members land on. When the modifier and the child both handle a name, both run: the child first, then the modifiers from the inside out.

Gestures

Event	Fires	Payload
`drag` (`UiComponentEvents.Drag`)	While the pointer moves, once it has travelled `0.04` of the basis. At most every `100 ms`.	`{"x":n,"y":n}`, the translation since the gesture began, in basis fractions, `x` right-positive, `y` down-positive
`drag-end` (`UiComponentEvents.DragEnd`)	Once on release, only after a `drag` began. Not sent if the node leaves the tree or becomes disabled mid-drag.	As `drag`, the final translation
`swipe` (`UiComponentEvents.Swipe`)	On release, when the dominant axis travelled at least `0.2` of the basis within `500 ms`.	`"left"`, `"right"`, `"up"` or `"down"`
`pinch` (`UiComponentEvents.Pinch`)	While two pointers move. At most every `100 ms`.	A bare number, the scale since the pinch began
`pinch-end` (`UiComponentEvents.PinchEnd`)	Once, when the pinch ends. Not sent if the node leaves the tree or becomes disabled mid-pinch.	As `pinch`, the final scale

The constants live on UiComponentModifiers (GestureSlop, SwipeMinDistance, SwipeMaxDurationMs, GestureThrottleMs). A gesture can be declared on any node, with or without a modifier.

Inner controls win. A pointer that starts inside a descendant that takes a value (a slider, dial, toggle, segmented control or text field), declares a gesture of its own, or is a ui.list belongs to that descendant.
An inner press wins until slop. Once the pointer travels past 0.04 of the basis, the outer gesture takes over and the press ends with press-end and no press.
Touch action. A node declaring a gesture turns off the browser’s own panning and zooming for its box. A ui.list inside it keeps scrolling.
On a deck tile, a gesture claims the pointer but not a key. A tree declaring a gesture takes every pointer press on its tile, so the tile’s own long-press cannot fire in the middle of a drag. Keyboard and physical-control activation cannot drag, so a tree that declares only gestures still runs the tile’s own flow from a key.
pinch on iOS, and every gesture at the Safari 9 floor, is unverified.

Pointer streams and taps

drag, swipe and pinch report a recognised gesture. For a surface that needs every finger - a touchpad, a drawing pad, a joystick - declare the pointer family instead:

new UiModifier
{
    Key = "touchpad",
    Events =
    [
        UiEventHandler.On(UiComponentEvents.PointerDown, e =>
        {
            if (e.TryGetPointerDown(out var down)) fingers[down.Sample.Id] = down.Sample;
        }),
        UiEventHandler.On(UiComponentEvents.PointerMove, e =>
        {
            if (!e.TryGetPointerSamples(out var samples)) return;
            foreach (var sample in samples)
            {
                if (fingers.Count == 1 && fingers.TryGetValue(sample.Id, out var last))
                    mouse.MoveBy(sample.X - last.X, sample.Y - last.Y);
                fingers[sample.Id] = sample;
            }
        }),
        UiEventHandler.On(UiComponentEvents.PointerUp, e =>
        {
            if (e.TryGetPointerUp(out var up)) fingers.Remove(up.Sample.Id);
        }),
        UiEventHandler.On(UiComponentEvents.Tap, e =>
        {
            if (e.TryGetTap(out var pointers)) mouse.Click(pointers == 2 ? MouseButton.Right : MouseButton.Left);
        }),
    ],
    Child = new UiStack(),
}

fingers is a Dictionary<int, UiPointerSample> the view keeps, and mouse stands for the plugin’s own input code.

Event	Fires	Payload
`pointer-down` (`UiComponentEvents.PointerDown`)	A finger, pen or primary mouse button went down on the node.	`{"id":n,"x":n,"y":n,"t":n,"width":n,"height":n}`
`pointer-move` (`UiComponentEvents.PointerMove`)	Pointers moved. At most every `16 ms`, carrying every position since the previous one, except that waiting samples are sent at once before any other event of the family.	`{"samples":[{"id":n,"x":n,"y":n,"t":n}, ...]}`, oldest first, at most `256`
`pointer-up` (`UiComponentEvents.PointerUp`)	A pointer lifted, or the platform cancelled it.	`{"id":n,"x":n,"y":n,"t":n}`, plus `"cancelled":true` for a cancelled one
`tap` (`UiComponentEvents.Tap`)	After the last `pointer-up` of a touch that took at most `400 ms` from the first finger down to the last finger up, in which no pointer travelled more than `0.04` of the basis and none was cancelled.	`{"pointers":n}`, the most fingers down at once

Ids. id is an opaque integer that stays the same from a pointer’s pointer-down to its pointer-up. Every reader starts its ids at a random point, so two decks on one shared widget reporting the same id is very unlikely, though not impossible.
Positions are relative to the node’s top-left corner in basis fractions, x right-positive, y down-positive; width and height on pointer-down give the node’s size in the same unit. Inside a rotated ui.transform they are in screen axes, as drag is.
Time. t is whole milliseconds since the first finger of the current touch went down, so samples of different fingers line up.
Order. Waiting samples are always sent before any other event of the family, and tap after the last pointer-up.
A newer move may replace an older one. While a pointer-move for the same node from the same client is still waiting to be delivered, Macro Deck and the plugin runtime may drop it in favour of the newer one, and a move the plugin could not take because it was busy or slow is dropped instead of ending the session. A finger that appeared only in a dropped batch keeps its older position until it moves again or lifts. Read time from t, never from the number of events.
Handle pointer-move synchronously and do not rebuild the tree for each one. An asynchronous handler is started for every event and not awaited, so slow ones pile up and may finish out of order. UI updates are limited to 30 a second (a burst of 90); a tree that changes on every move soon ends its session.
pointer-up is not guaranteed after a connection ends. One follows each pointer-down while the node still declares it, is enabled and is in the tree. Nothing arrives after the client disconnects or leaves the view, or when a stalled connection drops events: release whatever a finger holds when the session ends, and do not keep a mouse button held for a finger that has sent nothing for a while.
The node owns its fingers. A pointer that starts on a node declaring any of the four belongs to it: an ancestor’s drag, pinch or press does not take it, the browser does not pan under it, and a ui.list cannot be scrolled from a touch that starts there. Nested nodes: the innermost one owns the finger, so one touch taps once.
Buttons on a pad. A finger that starts on a button inside the node is still streamed to the node, the button still presses, and that touch sends no tap. A touch on a node that declares a press name itself sends no tap either. Once a streamed finger travels past the slop, a press it started ends without press, as with drag.
Keys and hardware. A tree declaring only the pointer family still runs the tile’s own flow from a key or a hardware deck; nothing is streamed from them. The interactive screensaver does not pass the pointer to these nodes.
The constants are UiComponentModifiers.PointerMoveIntervalMs, PointerMoveMaxSamples and TapMaxDurationMs. Below the Safari 9 floor the pointer family is unverified.

Disabled

new UiModifier { Key = "controlsState", Disabled = UiValue.From(() => !connected.Value), Child = controls }

Disabled is shorthand for the producer, not a second source of truth: events stay the contract.

The DSL strips events. While Disabled is true, no node in the wrapped subtree, and none in its fallback, declares an event, and UiView.Dispatch answers Ignored for any of them.
On the wire it is presentation. disabled: true dims the node to 0.4 opacity once - a disabled region inside another is not dimmed twice - and marks the subtree aria-disabled.
Readers refuse events inside a disabled region, even when a hand-written tree still declares them, and a slider, dial, toggle, segmented control or text field inside one cannot be operated.
A disabled region absorbs every press on the tile. If any node in a deck tile’s tree is disabled, pressing anywhere on the tile runs none of the tile’s own flows. Disabled therefore means “a control that is unavailable”; to fade something that is only decorative, use Opacity instead. On a hardware deck the host asks a plugin tile’s tree once per press. A tree that does not answer within a second, or a plugin already at its limit of open views, absorbs that press as well.

A mute button tile, dimmed: the red face, the crossed-out microphone and the Mute label all shown at reduced opacity

An older reader ignores disabled and draws the region undimmed. Because the DSL stripped its events, it offers none of them either, but it does not absorb the tile’s press: on a deck tile, the tile’s own flows still run there, as they do from a hardware key today.

Known gaps:

The web client’s keyboard and hardware activation honours the absorption but not the tree’s own activation.

Properties

`modifiers` (on any node)

DSL member (wire member)	Values	Absent	An older reader
`Background` (`background`)	`#rrggbb`, a linear or a radial gradient	No change	Draws the node’s own background
`Radius` (`radius`)	length	The node’s own corner	Draws the node’s own corner
`BorderWidth` (`borderWidth`)	length	No border	Draws no border
`BorderColor` (`borderColor`)	`#rrggbb`	The reader’s choice - set it whenever the colour matters	Draws no border
`BorderLine` (`borderLine`)	`solid`, `dashed`, `dotted`	`solid`	Draws no border
`AccessibilityLabel` (`accessibilityLabel`)	localized text	No label	Omits the label
`AccessibilityHint` (`accessibilityHint`)	localized text	No hint	Omits the hint
`Disabled` (`disabled`)	`true`	Not disabled	Draws the node undimmed

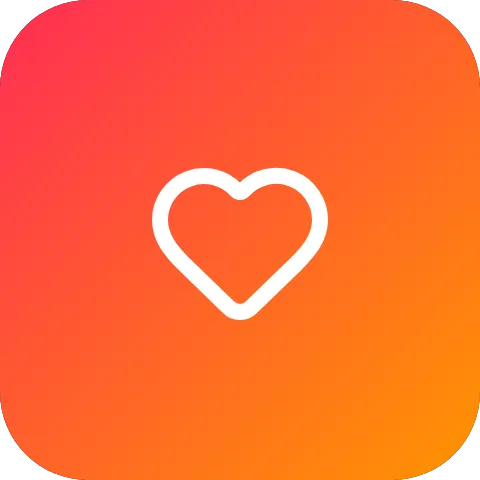

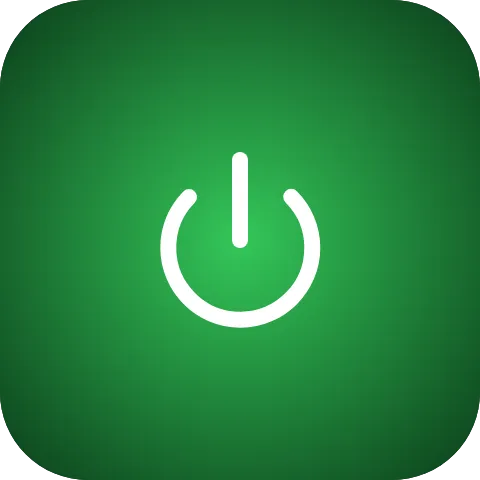

A gradient travels as {"linear":{"angle":deg,"stops":[{"offset":0..1,"color":"#rrggbb"}]}}, angle in the CSS convention (0 towards the top, clockwise), or {"radial":{"centerX":0..1,"centerY":0..1,"stops":[...]}}, with at least two stops; a reader draws no gradient from fewer, or from any stop it cannot read. Colours are literal, like every data colour - see Theming. On a stack, button or list, background and radius replace the component’s own background and corner.

`ui.modifier`

DSL member (wire property)	Values	Absent
`Padding` (`padding`)	length	No padding
`Opacity` (`opacity`)	`0..1`	Fully opaque
`Clip` (`clip`)	`bounds`, `circle`, `capsule`	Nothing is clipped
`Mask` (`mask`)	a linear or radial gradient of `{"offset","opacity"}` stops	No mask
`Frame` (`frame`)	`width`, `height`, `minWidth`, `maxWidth`, `minHeight`, `maxHeight` lengths, `aspectRatio` greater than `0`	The box the parent hands it
`MainSize` (`mainSize`), `Fill` (`fill`), `Answer` (`answer`)	-	Shared with every container - see Stack and layer.

The wrapper node may also carry modifiers and events. Enum values live in UiComponentClips and UiComponentBorderLines.

A gradient disc clipped to a circle in the middle of a black tile A gradient tile whose lower part fades out through a linear mask A gradient card held to a 16 aspect ratio inside a tile two cells wide Artwork shown at reduced opacity over the tile background A gradient square clipped to its bounds with rounded corners A wide gradient card clipped to a capsule with fully rounded ends A gradient card at a fixed width and height in the middle of a tile A filling gradient card held between a minimum and maximum width inside a tile two cells wide

Why padding is here. Padding could have been a plain property, but padding on an arbitrary node changes that component’s own geometry, so a reader ignoring it would lay the siblings out wrongly rather than just more plainly.

Children

Exactly one element.

Layout

The wrapper lays its child out in its own box minus padding on every edge. frame fixes or clamps the wrapper’s box and, with aspectRatio, its shape; a frame smaller than the space it is given is centred in it. On its parent’s main axis the wrapper is its child’s content extent plus twice the padding, or the frame’s fixed length, clamped by the frame’s minimum and maximum.

Wrapping moves MainSize and Fill to the wrapper: set them on the UiModifier, since a wrapped child that sets them is rejected when the view is built. A filling wrapper’s maximum clamps only its own size; the surplus is not handed to its siblings. See Sizing.

Reader behaviour

radius does not clip. It rounds the background and border only; to clip content, use clip on a wrapper. clip: bounds rounds by the wrapper’s own modifiers.radius.
radius is ignored on the tree root, because the tile’s corner belongs to the surface (ADR 0065).
The border is drawn inside the edge. It takes no space, so the node’s content and its children’s boxes are unchanged. On a stack, button, layer, transform, grid, toggle, segmented control or ui.modifier it is a layer above the content, including a button’s artwork; on every other node it is an outline, which an older engine may draw with square corners.
Opacity covers the whole wrapper; a disabled wrapper at opacity: 0.5 shows at 0.2.
A fallback is its own node. A reader drawing a node’s fallback draws the fallback’s own modifiers, not the replaced node’s; give the fallback the ones it needs.
Accessibility. accessibilityLabel becomes the node’s accessible name and accessibilityHint its description, the latter with weaker support at the Safari 9 floor. A labelled node that claims a press gets the button role, other labelled nodes without a native role the group role; a text field keeps its own.
A reader that does not know ui.modifier draws the node’s fallback, negotiated in turn. Without one it draws none of the wrapped content (Macro Deck’s own renderer shows a faint placeholder box in its place), per The UI model. Give a wrapper a fallback built from the same content under its own keys:

{
  "id": "card",
  "type": "ui.modifier",
  "properties": { "padding": { "basis": 0.08 }, "modifiers": { "radius": { "basis": 0.12 } } },
  "children": [{ "id": "icon", "type": "ui.image", "properties": { "source": { "resourceId": "icon" } }, "children": [] }],
  "fallback": { "id": "iconPlain", "type": "ui.image", "properties": { "source": { "resourceId": "icon" } }, "children": [] }
}

The shared fixture conformance-modifier-tree.json covers every member, property and event on this page.
