Video stream

A live video stream that a video stream provider offers: an OBS scene, a camera, a capture device. The tree names the stream and nothing else. The client showing it asks Macro Deck for a session, plays it over a transport it supports, and releases it again, so you never write a player, a reconnect loop or a placeholder yourself.

macrodeck.video-stream

Example

new UiVideoStream
{
    Key = "program",
    Stream = UiValue.Of(new UiVideoStreamReference { Provider = "com.example.obs::studio", Id = "Program" }),
    Fit = UiComponentImageFits.Cover,
    Fill = true,
    Fallback = new UiTextRun { Key = "programFallback", Text = "Update Macro Deck to see the stream" },
}

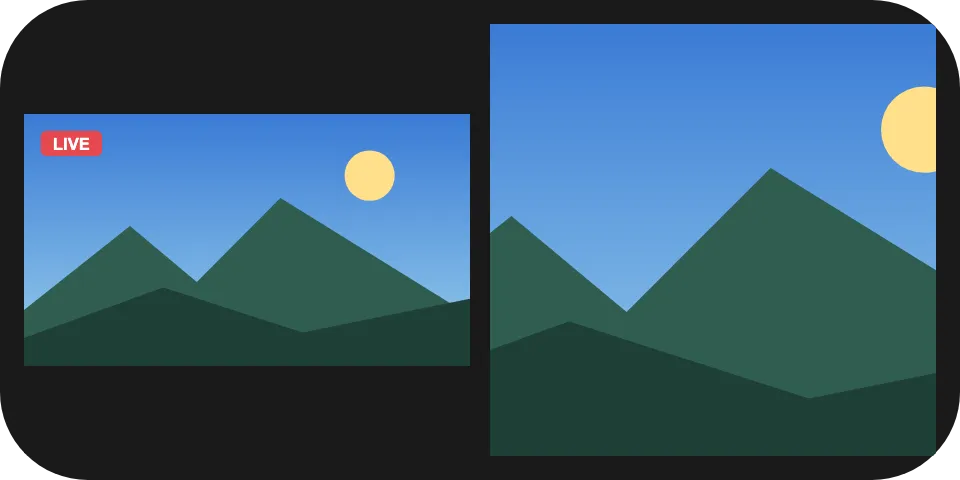

The same stream with contain on the left and cover on the right.

macrodeck.video-stream works wherever Macro Deck UI does: in a built-in widget, in your own widget type, in a folder view, in a modal or on a screensaver, and the same whether your plugin runs in or out of process.

Properties

Property	Meaning
Stream	The stream to show, as a UiVideoStreamReference. Absent shows a placeholder.
Fit	contain (default) shows the whole picture, letterboxed; cover fills the box and crops.
Size	The extent along the parent stack’s main axis.

Provider is the provider’s qualified id, plugin.id::provider-id, the one VideoStreamProviderRegistration.QualifiedId returns. Id is the stream’s id within that provider. On the wire:

{"type":"macrodeck.video-stream","properties":{"stream":{"provider":"com.example.obs::studio","id":"Program"},"fit":"cover"}}

A reader treats a stream it cannot read, such as a missing member, as absent.

Sizing

Size is how much of the parent stack’s main axis the view takes, not the edge of a square: the other axis is whatever the stack gives it. Absent, the view takes no space on the main axis, so give it Size or Fill. The picture always keeps the stream’s own aspect ratio inside that box. Before the first frame arrives, the reader reserves the width and height the provider declared for the stream, so the layout does not jump.

What the reader takes care of

• The session. It opens one while the view is on screen, suspends it while the view is scrolled out of sight or covered by the screensaver or the lock screen, and closes it when the view goes away or the page is hidden.
• States. While the stream is connecting or reconnecting, gone, or offered in no transport this device plays, the reader draws its own placeholder and a short message, in the reader’s language. A message the provider sends with its session update is shown instead of the generic one.
• Recovery. A session that ended because the provider restarted, the connection to Macro Deck dropped or the source went away is opened again on its own, with a growing delay. A stream that does not exist is tried again when the provider’s streams change.
• Transports. The client offers hls, only where the device plays it natively, and mjpeg, which every device plays, and uses the first one the provider serves. A transport that fails to play on this device, for example because the browser blocks autoplay, is dropped for the next attempt while another is left. The media comes from Macro Deck itself, never from the provider. See What Macro Deck’s clients play.
• Sound. The stream always plays muted.

The reader names the view after the stream for assistive technology.

Older readers

A reader that predates macrodeck.video-stream draws the node’s Fallback, as for any type it does not know, so set one. The type needs no RequiredComponentVersion.
