Transform

Draws its children like a layer - every child across the whole box, first one furthest back - then scales, rotates and shifts them together as one picture.

ui.transform

Example

new UiTransform
{
    Key = "needle",
    Rotation = UiValue.From(() => speed.Value * 1.8 - 90),
    OriginX = 0.5,
    OriginY = 0.9,
    Children = [new UiImage { Key = "needleArt", Source = needle }],
    Fallback = new UiTextRun { Key = "reading", Text = UiText.From(() => $"{speed.Value:0} km/h") },
}

A half-circle gauge filled in blue to 70 percent, with a white needle turned about a pivot near the bottom edge

A gauge needle pivoting near its bottom edge. Each update is a set-properties patch carrying rotation alone; the reader redraws locally, with no new image per update.

Rotating an icon

new UiTransform { Key = "arrow", Rotation = 90, Children = [arrowIcon] }

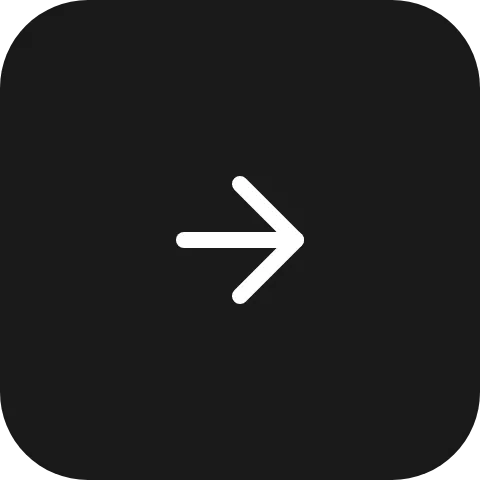

An upward arrow icon rotated 90 degrees so it points right

Rotation is degrees, clockwise, about the pivot. The pivot defaults to the centre.

Moving the pivot

new UiTransform { Key = "hand", Rotation = 30, OriginX = 0.5, OriginY = 1.0, Children = [hand] }

     /        pivot at (0.5, 1.0):
    /         the hand turns about
   o          the middle of the bottom edge

OriginX and OriginY are fractions of the element’s own width and height. A value outside 0..1 puts the pivot outside the box.

Scaling and nudging

new UiTransform { Key = "art", Zoom = 1.2, OffsetX = 0.1, OffsetY = -0.05, Children = [artwork] }

Applied in a fixed order: Zoom, then Rotation, both about the pivot, then the offsets in the parent’s unrotated axes. These are the same keys a button frames its artwork with; on a button the artwork scales about its own centre within the ranges listed there, here it scales about the pivot and any finite value is allowed.

Nesting

new UiTransform { Key = "dial", Rotation = dialAngle, Children = [face, new UiTransform { Key = "needle", Rotation = needleAngle, Children = [needle] }] }

Nested transforms compose.

Properties

Property	Values	Default	Meaning
`Rotation` (`rotation`)	`double`, degrees	`0`	The clockwise turn about the pivot.
`OriginX` (`originX`)	`double`, fraction of own width	`0.5`	Where the pivot sits across the box; outside `0..1` is outside the box.
`OriginY` (`originY`)	`double`, fraction of own height	`0.5`	Where the pivot sits down the box.
`Zoom` (`zoom`)	`double`, multiplier	`1`	Scales the content about the pivot; a value not greater than `0` means `1`.
`OffsetX` (`offsetX`)	`double`, fraction of own width	`0`	Shifts the content across, after zoom and rotation.
`OffsetY` (`offsetY`)	`double`, fraction of own height	`0`	Shifts the content down, after zoom and rotation.
`MainSize` (`mainSize`), `Fill` (`fill`), `Answer` (`answer`)	-	-	Shared with every container - see Stack and layer.

Events

None of its own.

Children

Any element, any number. Transforms nest and compose.

Layout

The transform is visual only. The node’s own box, its size on the parent’s main axis and its siblings are laid out as if it were absent, and text inside it is fitted to its untransformed box. See Sizing.

Reader behaviour

Apply zoom, then rotation, both about the pivot, then offsetX/offsetY in the parent’s unrotated axes.
Treat a zoom not greater than 0 as 1; accept any finite value otherwise.
Lay out and fit text as if the transform were absent.
Clip nothing; an ancestor that clips, such as a tile or a button, still does.
Presses hit the drawn shape. A ui.slider under a non-zero rotation has no defined pointer mapping.
A reader that does not know ui.transform draws the node’s fallback, so a gauge should carry one that still shows its reading:

{
  "type": "ui.transform",
  "properties": { "rotation": 42, "originX": 0.5, "originY": 0.9 },
  "children": [{ "type": "ui.image", "properties": { "source": { "resourceId": "needle" } } }],
  "fallback": { "type": "ui.text", "properties": { "text": "42 km/h" } }
}
