Responsive

UiResponsive holds several layouts for one place in the tree. The reader draws the first one whose condition holds for the box the node is given, and chooses again whenever that box changes. Your view never learns the size and never rebuilds when it changes.

ui.responsive (component version 1)

Example

new UiResponsive
{
    Key = "weather",
    Default = new UiStack
    {
        Key = "compact",
        Justify = UiComponentJustify.Center,
        Children = [new UiTextRun { Key = "temp", Text = "21°", Size = 0.3 }],
    },
    Variants =
    [
        new UiResponsiveVariant
        {
            MinWidth = 1.5,
            Content = new UiStack
            {
                Key = "wide",
                Direction = UiComponentDirections.Horizontal,
                Children = [icon, details],
            },
        },
        new UiResponsiveVariant
        {
            MaxAspect = 0.67,
            Content = new UiStack { Key = "tall", Children = [icon, temperature, forecast] },
        },
    ],
}

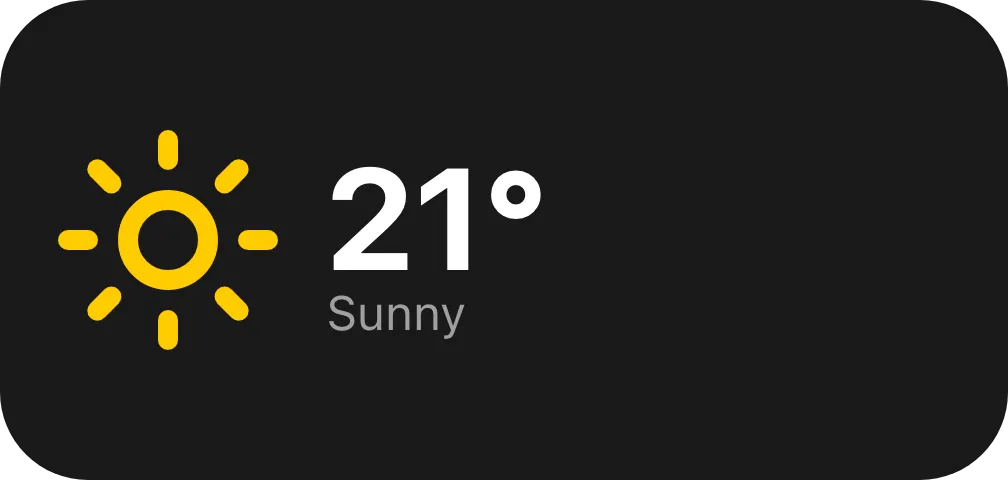

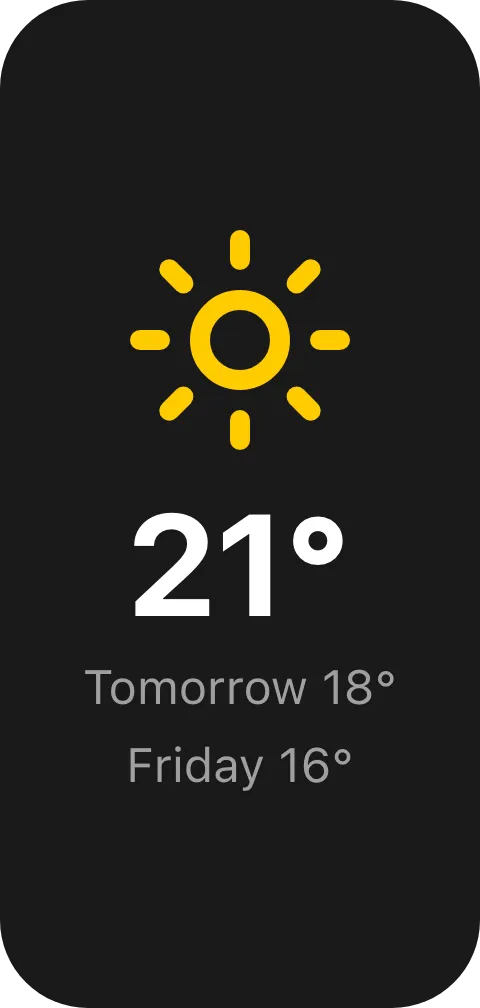

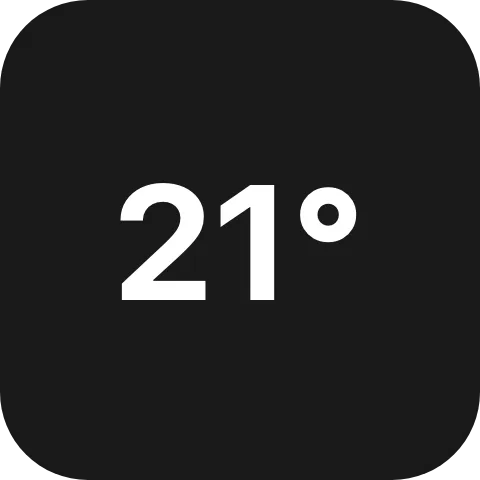

One tree, three layouts: the default on one cell, the wide one on 2x1 and the tall one on 1x2. Resizing the widget on the deck switches between them immediately.

Conditions

Member	Holds when
MinWidth	the box is at least this many cells wide
MaxWidth	the box is less than this many cells wide
MinHeight	the box is at least this many cells tall
MaxHeight	the box is less than this many cells tall
MinAspect	width over height is at least this
MaxAspect	width over height is less than this

• A variant holds when every member you set holds. A variant with none set always holds, so put it last.
• Variants are tried in order and the first that holds wins. Default is drawn when none does.
• A minimum includes its value and a maximum excludes it, so MaxWidth = 2 and MinWidth = 2 split the range with nothing drawn twice. Both are compared with a tolerance of 0.0001 (UiResponsiveSelection.Tolerance), so a tile that is exactly two cells wide counts as two cells even when the reader’s scaled pixels round.
• A member that needs a side the reader does not know never holds. MinAspect needs both sides.

What a cell is

On a deck tile, one cell is one grid cell: a 2x1 tile is two cells wide plus the spacing between them, so it is slightly more than 2. Spans are exact, so MinWidth = 2 means “two columns or more” whatever the folder’s spacing.

Anywhere else - a folder view, a modal, a screensaver - a cell is 120 of the reader’s own layout units, which are CSS pixels in Macro Deck’s clients. MinWidth = 6 there means “at least 720 px wide”. A measured CSS width can land a fraction of a pixel either side of a round number, so leave some room around a threshold rather than putting it exactly on a width you expect.

Aspect conditions mean the same everywhere and are usually the better choice for “landscape” and “portrait”.

The box it chooses by

The node chooses by its own box, not by the tile’s or the window’s. As the root of a widget it gets the whole tile. Inside a stack it gets the slot the stack gives it, so give it Fill or MainSize like any other child. The chosen layout is always drawn across the whole box.

MainSize, Fill, ColumnSpan and RowSpan go on the UiResponsive. A layout that sets them is rejected when the view is built, and so is a layout that is a UiWhen, a UiRepeat or a fragment. Put those inside a layout instead.

What every layout costs

Every layout is built, kept current and sent to the reader, whichever one is on screen. They all count toward the tree limits: 2000 nodes, 192 KiB per tree and 64 KiB per patch. Each UiResponsive also adds a level toward the 32-level nesting limit.

Keep the layouts small, and share what they have in common through a helper method rather than a large subtree repeated in every variant.

Per-client state that lives in the reader, such as a text field’s unsent text or a list’s scroll position, is lost when the reader switches to another layout. State in your view is not.

Older readers

A reader that does not know ui.responsive draws the node’s Fallback. When you set none, Default is sent a second time as the fallback, under ids below <id>._fallback, so an older reader draws your default layout. That copy has consequences:

• It is patched along with the default, so a change inside Default is sent twice.
• A UiResponsive nested inside another’s Default is copied again for each level.
• The key _fallback is reserved: a layout keyed _fallback is rejected.
• The copy’s ids are longer. One that would pass the 128-character id limit is rejected with a message that names the node.
• A configuration input cannot sit inside Default, because its id would appear twice.

In each of these cases, set an explicit Fallback and no copy is made.

An older reader also walks every layout when it decides whether the tile’s own press belongs to a control in the tree. Put the controls a tile must never lose in Default.

Presses and hardware keys

A pointer press on a drawn control always reaches that control.

For the tile’s own press, a keyboard activation or a hardware key on a device, the reader looks for a control in the layout it draws. That is exact for a UiResponsive at the root of the widget, or reached from the root only through a UiLayer, a UiTransform or a UiModifier without padding or frame. For one nested deeper, the tile counts its default layout. A drag or swipe on a control inside a nested layout can therefore also start the tile’s own press.

When the layout at the root is itself a button, it is treated as the whole tile, exactly as a bare button root would be.

Testing

UiTestHost.SetBox(widthCells, heightCells) picks the layout ByType, SingleByType and ByText see. See Custom views.

var host = UiTestHost.Render(weather, widgetSurface);
host.SetBox(2.1, 1);
Assert.That(host.ByText("Sunny"), Is.Not.Empty);

UiResponsiveSelection.SelectChild is the rule itself, over the wire form, for a reader of your own.

Reference

Property (UiResponsive)	Wire	Meaning
Default	children[0]	Drawn when no variant holds, and by an older reader
Variants	children[1..] and variants	The conditional layouts in order; variants[i] is the condition for children[i + 1]
MainSize, Fill, ColumnSpan, RowSpan	as on any node	The node’s slot in its parent
Fallback	fallback	Your own fallback; when absent, a copy of Default

Reader rules:

• Draw the first children[i + 1] whose variants[i] holds for the node’s own box, else children[0]. Draw only that child, across the whole box.
• Widths and heights are in cells of 120 reference units. A side that is zero, negative or unknown is unknown.
• A condition that is not an object never holds. A member that is not a number is ignored.
• Choose again whenever the box changes.
• A tree root that is a ui.responsive hands its root status to the child it draws.

See also

• Sizing - lengths that scale within one layout
• Stack and layer
• Deck widget views
• ADR 0094
