AdGuard Home

Macro Deck talks to the web interface of AdGuard Home, so it works with every AdGuard Home that you can open in a browser. You can add as many servers as you like, for example one at home and one on a VPS.

Adding a server

Open Integrations, choose AdGuard Home and add a configuration:

• Configuration name: how the server is called in actions and widgets, for example Home or Office.
• Address: the address you open the AdGuard Home web interface with, including the port, for example http://192.168.1.2:3000. If AdGuard Home is behind a reverse proxy under a path, enter that path too.
• Username and Password: the account you sign in to AdGuard Home with. Leave both empty if your AdGuard Home does not ask for a sign-in.
• Accept a self-signed certificate: only for an https:// address whose certificate your computer does not trust. Macro Deck then no longer checks who it is talking to, so leave it off when you can.

Macro Deck checks the connection before it saves the configuration and tells you when the address is wrong, the server cannot be reached or does not answer in time, the sign-in is rejected, or the server does not answer like AdGuard Home. The password is stored encrypted and is never sent to the deck or a browser.

The list of configurations shows for each server whether it is connected. A server whose sign-in is rejected shows that it needs to be set up again.

Actions

Every action has an Instance field for the server it controls.

Action	What it does
Enable protection	Turns protection on, also ending a pause
Disable protection	Turns protection off until you turn it on again
Toggle protection	Turns protection on when it is off, and off when it is on. A button with it lights up while protection is on
Disable protection temporarily	Turns protection off for 5, 15 or 30 minutes, 1, 2, 8 or 24 hours, or a custom duration of up to 7 days. AdGuard Home turns it back on by itself
Enable filtering, Disable filtering, Toggle filtering	Turns blocking by filter lists on or off. The other protection settings stay as they are
Update filter lists	Downloads the latest version of every blocklist and allowlist

An action fails with a message when the server cannot be reached, rejects the sign-in, or does not support the request.

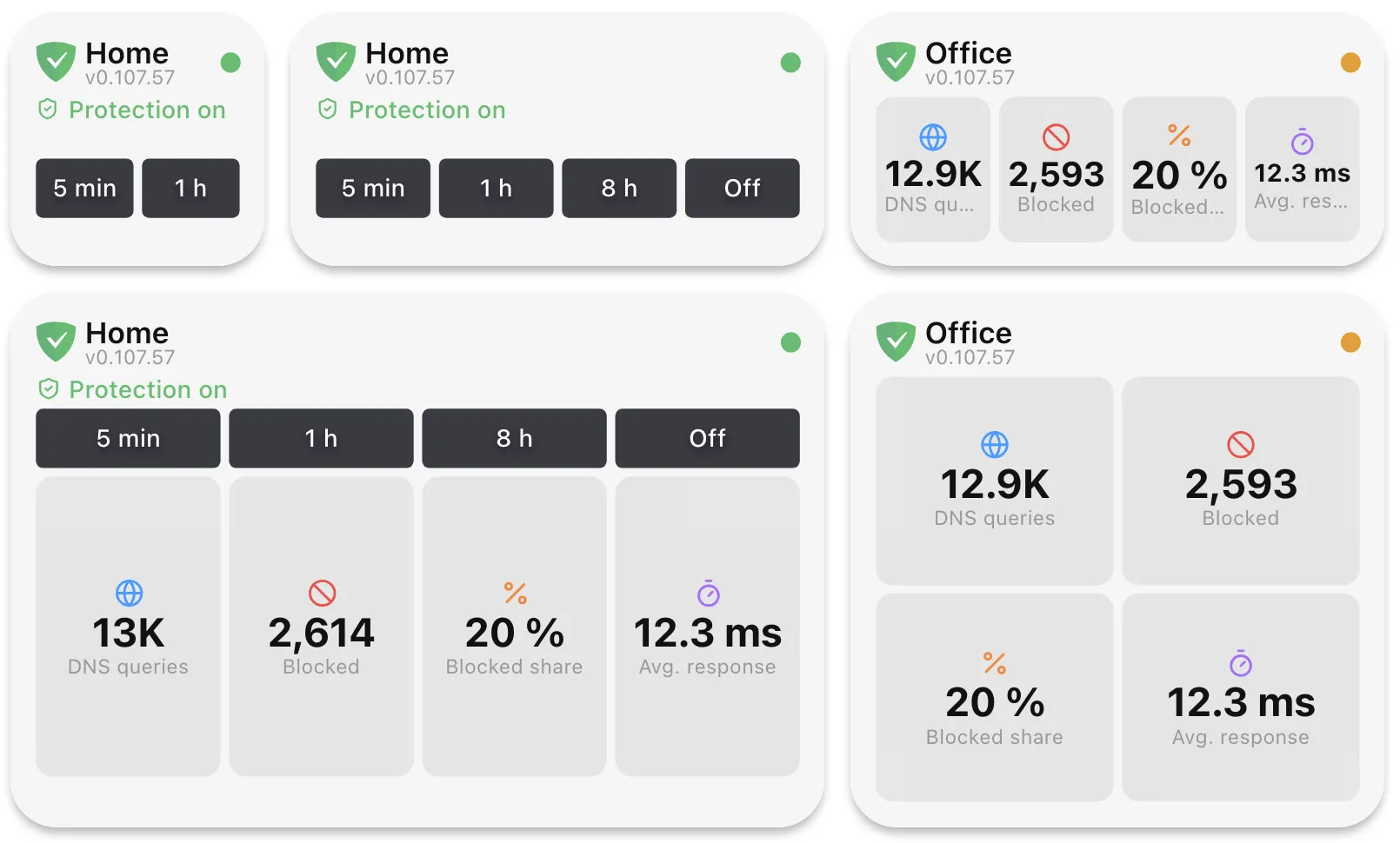

The AdGuard Home widget

Add the AdGuard Home widget to a folder and choose in its settings:

• Instance: the server it shows. When you leave it empty, it shows the first one.
• Display name: a name to show instead of the configuration name.
• View: Protection controls, Statistics, or Controls and statistics.
• Pause buttons: the durations offered while protection is on, in the order you list them.
• Statistics: the values to show, in the order you list them.
• Whether it shows the AdGuard Home version and the status indicator.

While protection is on, the widget shows a green shield and the pause buttons. Pressing one pauses protection for that long; Turn off disables it until you turn it on again. While protection is paused or off, the widget shows when it resumes and an Enable protection button.

A larger widget shows more: a widget one cell wide shows the first two pause buttons or statistics, a wider or taller one shows more of them, and Controls and statistics adds the statistics below the buttons once the widget is at least two cells wide and two cells tall.

The statistics cover the period AdGuard Home keeps statistics for, 24 hours unless you changed it there:

Statistic	What it counts
DNS queries	All DNS queries
Blocked	Queries blocked by filter lists
Blocked share	Blocked queries as a share of all queries
Avg. response	The average time AdGuard Home took to answer
Malware blocked	Queries blocked by browsing security
Adult blocked	Queries blocked by parental control
Safe search	Searches switched to safe search

When the server cannot be reached, rejects the sign-in or does not answer like AdGuard Home, the widget says so and shows no numbers, so it never shows old values as if they were current. It updates again by itself once the server is back.

Pressing a widget button does nothing while your computer is locked.

Variables

Each server gets its own variables, named after the configuration name it had when you added it, for example adguard_home_home_protection_enabled. Renaming the configuration later keeps the names, so your buttons and scripts keep working. A very long configuration name is shortened in the variable names; the Variables page shows the exact names.

Variable	Contains
…_is_reachable	Whether Macro Deck can currently reach the server
…_protection_enabled	Whether protection is on
…_protection_disabled_until	When a pause ends, as an ISO 8601 time, or empty
…_dns_queries, …_blocked_queries	DNS queries and queries blocked by filter lists
…_blocked_percentage	Blocked queries as a share of all queries, in percent
…_avg_processing_time	The average response time in milliseconds
…_safebrowsing_blocked, …_parental_blocked, …_safesearch_enforced	The browsing security, parental control and safe search counts
…_version	The AdGuard Home version

While a server cannot be reached or rejects the sign-in, …_is_reachable is false and its other variables are marked as unavailable until the server answers again.

How often Macro Deck asks

Macro Deck asks each server for its status every 5 seconds and for its statistics every 30 seconds, and every widget and variable of that server uses the same answers. Adding more widgets does not add requests. After an action, the status is read again right away. While a server cannot be reached, Macro Deck tries again every 30 seconds.
